SeceuroFire Flame
shutters

Security and fire protection combined – available in one, two or four hour ratings.

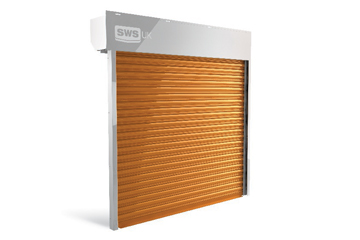

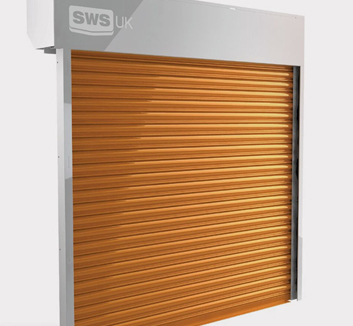

Flame Shutter is an electrically operated vertical fire shutter, consisting of a steel slatted curtain and galvanised steel box assembly and guide rails. The box, curtain, guide rails and bottom rail can be powder coated as an optional extra. Designed to be a security barrier during normal use and to be closed automatically during a test or an emergency situation. In the event of receiving a fire alarm signal the barrier will perform a powered descent to create a fire resistant barrier. In the event of power failure Flame Shutter will close using the battery backup feature. Flame Shutters design allows for both face or reveal installations.

Benefits

The Flame Shutters have been designed to offer a wide range of benefits, some of these include:

Product Performance

This product is uniquely capable of providing specifiers with a choice of Flame Shutter 60, 120, or 240 minutes integrity performance in accordance with the standards mentioned above. Available in three integrity ratings:

Flame Shutter 60 (1 hour rated)
Flame Shutter 120 (2 hour rated)
Flame Shutter 240 (4 hour rated)

Size Limitations

Sizes can vary according to integrity rating and larger sizes require a hood support bracket. Please check for confirmation. Maximum sizes can vary according to integrity rating.

Min/max width: 800 mm / 7000 mm
Min/max height: 800 mm / 4600 mm

Standards

The fire resistance performance of shutters to BS 476: Part 22: 1987. The fire resistance performance of shutters to BS EN 1634-1: 2008. The product was tested and approved by Exova Warringtonfire, report no. 312862. Colours Options We offer optional RAL colours available on this and many of our security products:

Colour Options

We offer optional RAL colours available on this and many of our security products:

Intelligent Features

The SeceuroFire Flame Shutter’s construction has a long list of features, built to the highest specifications as you would expect from SWS UK.

Flame Shutter Specifications

Testing & Standards
Tested and approved by Exova Warringtonfire
BS476: Part 22 1987
BSEN1634-1:2008
Available in 1,2 and 4 hour rating

Curtain

A single skin 75 mm scrolled or 50 mm flat galvanised steel slat
Weight: 50 mm flat slat 10 kg/m2
Weight: 75 mm scrolled slat 10 – 16.5 kg/m2 dependent upon the size of the curtain and integrity rating
The product is available galvanised as standard or powder coated to RAL or BS colour at extra cost

Guide Rails

3 mm thick galvanised steels channels 50 mm or 65 mm deep, depending upon shutter width mounted on steel angles for fixing. Available for face or reveal installations. Specify on order.

Bottom Rail

T Sectioned steel bottom slat
49 mm high x 74 mm deep

Shutterbox

Galvanised steel endplates welded to the top of the guide assembly, in a flag arrangement with a two piece box assembly. Boxes are supplied in sleeved sections to allow for expansion in 250 mm, 300 mm and 350 mm sizes depending upon shutter height.
